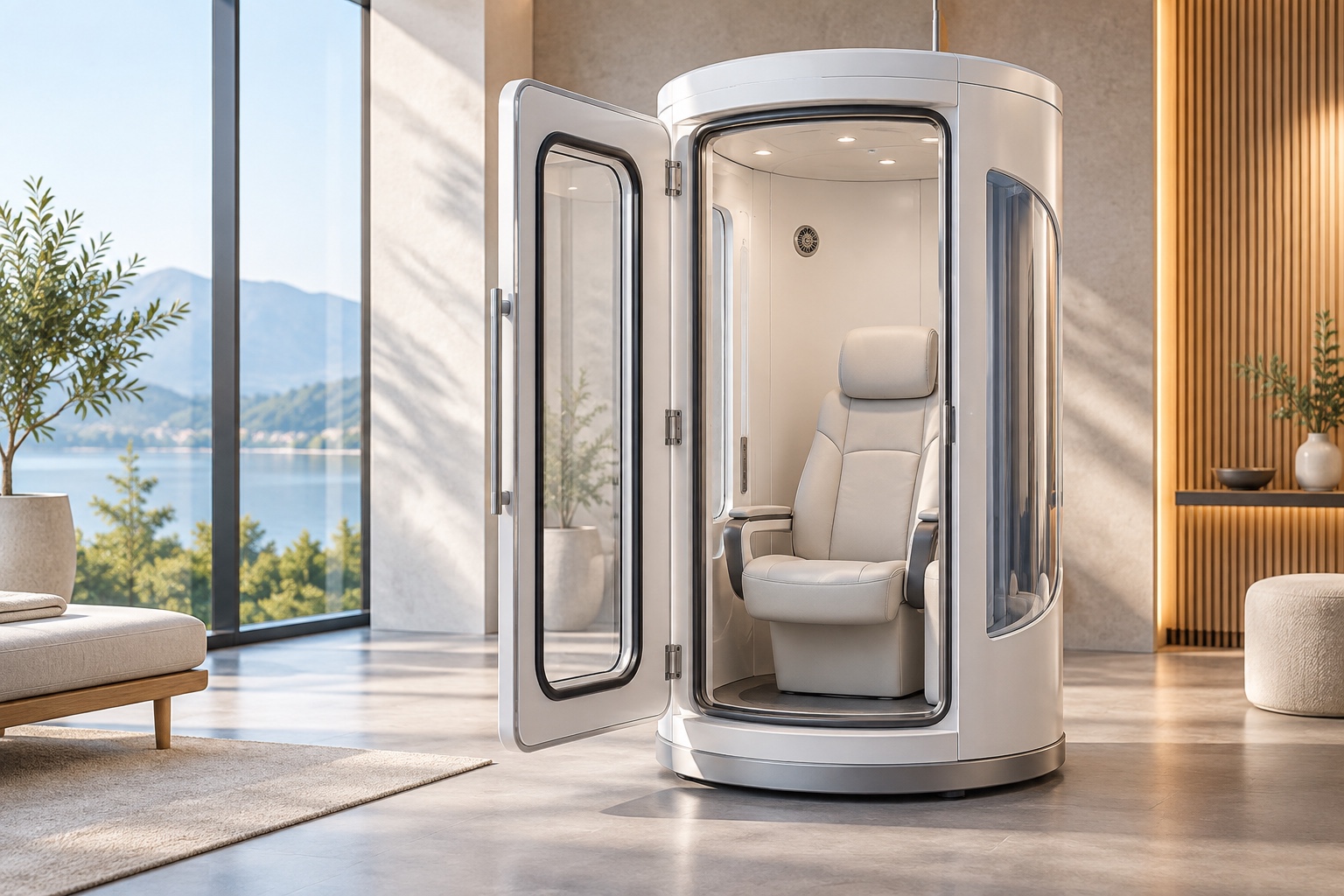

Vertical Hyperbaric Oxygen Chamber: What To Check First

Just because a vertical cabin can fit in the room doesn’t mean the user will be comfortable inside, nor does it guarantee that the equipment can be transported, installed, and maintained without issues. When selecting vertical hyperbaric oxygen chamber, the most common misjudgment is to only look at whether the appearance is "upright", but not to check the sitting posture, entrance, cabin space and the whole system together.

The vertical layout addresses the issue of cabin orientation. It is not the same as a walk-in, nor does it automatically mean that wheelchairs can enter. What truly affects the user experience and site adaptability are often more specific dimensions and movements.

First, distinguish between vertical, seated, and walk-in types

Vertical usually describes the vertical layout of the cabin or the use position; sitting, seated and sit-up focus more on sitting or semi-sitting posture; walk-in refers to the entry mode of personnel entering through the door. These several designations may appear simultaneously on a single device, or they may refer to different structures and are not interchangeable.

For example, a single-person hard-shell pod can adopt a compact vertical design, while a soft-shell pod can be designed as a portable seated unit or allow switching between a sitting and reclining posture. When making a determination, first clarify whether the specific model is a flexible or rigid pressure-bearing structure, and then confirm whether it features a fixed seating position, a reclining function, or a true walk-in entry.

For users with mobility impairments, “the door looks big” is still not enough. The effective clear width and height of the entrance, the threshold height, handrail placement, turning space, mounting methods, and emergency evacuation procedures all determine whether safe access and egress are actually possible. The term “walk-in” by itself does not guarantee wheelchair or stretcher accessibility.

Check the available space before getting in

The overall height only tells you how much vertical space the device occupies. For both seated and standing cabins, it is also necessary to separately verify the seat width, legroom, headroom, entrance dimensions, and seat adjustment range. If the cabin supports both seated and reclined postures, the available space, payload capacity, and operational limitations for each posture must be verified separately.

BaoBang’s product range includes single-seat soft-shell structures, soft-shell structures that accommodate both sitting and reclining postures, as well as single-seat hard-shell structures. Taking the specific model as an example, L1 is a single portable sitting soft cabin with external dimensions of 140cm long, 65cm wide and 160cm high. ST1700 is equipped with an adjustable folding chair, which can be seated or reclined. Its external dimensions are 170cm long, 70cm wide and 110cm high. HP750 is a single-seat hardware cabin with a vertical compact structure, with external dimensions of 200cm long, 96cm wide and 160cm high.

These external dimensions can aid in preliminary screening, but they cannot replace the internal clearance and entrance data. It is more reliable to tell the supplier about the user's common sitting posture, leg extension requirements and entry and exit movements, and to require the other party to correspond item by item with formal specifications or dimensional drawings than to only compare the height of the whole machine.

Don’t mistake compactness for ease of installation

Vertical configurations often minimize the footprint, but getting the equipment into the room is only the first hurdle. The transportation path also includes door width, elevator, corridor, turning space and lifting or handling conditions; after entering the room, there is also room for control systems, gas paths, electrical connections, heat dissipation, fire protection and maintenance.

Weight also depends on the system boundary. A figure on the equipment page may represent the empty weight, whereas actual deployment also involves auxiliary equipment and operating conditions. Soft-seat cabins shall be evaluated as a complete system comprising the cabin body, oxygen generator, air compressor, air cooler, and associated accessories. For the upright hardware enclosure, further verification is required for ground load capacity, total equipment weight, service clearances, and installation method. Foldability or portability only describes certain deployment characteristics; it does not mean the entire system can be carried by a single person, nor does it imply that no fixed installation is required.

Pressure values must be evaluated in conjunction with the structural analysis

Do not assume that two devices belong to the same specification just because both are labeled as “seat-type” or “vertical.” The software sitting model in Baobang's product range can be configured with 1.3 ATA, 1.4 ATA or 1.5 ATA, and the pressure specification of HP750 is 2.0 ATA. Pressure values at different levels should be compared under the same nominal diameter, and the normal operating pressure, the maximum allowable working pressure, and the set pressure of the pressure-relief device should be confirmed separately.

Higher stress does not automatically mean better fit. It is also judged by the intended use, pressure-bearing structure, oxygen supply mode, operating instructions, target market requirements and professional supervision conditions. The specific equipment can achieve a certain pressure, but this does not mean that any user is suitable for using it at that pressure, nor can users independently determine the operating parameters based on this.

Include both users and external operators in the evaluation

Whether a seated configuration is appropriate depends not only on the person sitting in the cabin. Before making a purchase, ensure that users can understand the instructions and alarms, complete pressure equalization, enter and exit smoothly, maintain communication, and seek assistance in case of emergencies. The transparent observation area facilitates monitoring but does not replace continuous supervision, communication, or emergency procedures.

External operators should also be able to see users, hear alarms, and deal with power outages, communication interruptions, equipment failures, or failure to decompress normally according to specific model instructions. Individual or household scenarios cannot be assumed to operate unsupervised. The passageways around the equipment should also be kept clear to prevent furniture, electrical wires, or debris from obstructing operation, evacuation, and maintenance.

Request a set of verifiable documents from the supplier

Before finalizing the model, you should at least obtain a formal quotation, a complete bill of materials, technical specifications, labeling information, operating instructions, installation requirements, a maintenance plan, and safety data. The manufacturer, full model number, pressure rating, oxygen supply configuration, equipment dimensions, and quotation listed in the document should correspond to one another.

Then fill in the site conditions one by one: what is the narrowest part of the transportation channel, how much load the ground can bear, whether the room meets the requirements of power supply, grounding, ventilation, fire fighting and maintenance space, and who is responsible for installation, training and follow-up services. As long as the net size of the entrance, the internal sitting space, or the weight of the entire system is still blank, mark the model as insufficient information first, rather than using the appearance photo to infer that it must be suitable.
