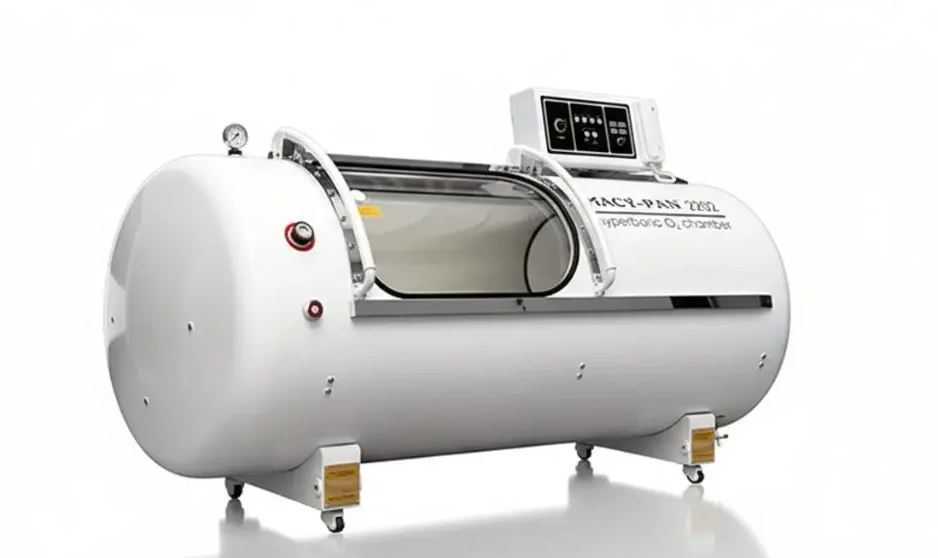

HP2202 is a hard-type hyperbaric oxygen chamber with a working pressure of up to 2.0 atmospheres, designed specifically for medical and rehabilitation institutions that seek excellent clinical efficacy. As a direct-source manufacturing factory, Hbotsale eliminates all intermediary markups to offer you highly competitive factory prices and faster, guaranteed global logistics delivery.
The HP2202 hyperbaric oxygen chamber is a professional-grade rigid sealed pressurization device. Users enter the chamber and inhale high-purity oxygen under a pressure of 2.0 atmospheres, significantly increasing the blood oxygen diffusion distance through physical pressurization, which is used to accelerate wound healing and assist in the rehabilitation of various chronic diseases.
the pressure control accuracy reaches 0.05 atmospheres, which can provide deeper tissue penetration than the ordinary 1.3-atmosphere oxygen chamber and significantly shorten the clinical rehabilitation period.
The cabin is equipped with two manual safety valves and an automatic pressure relief valve, which will automatically open when the pressure in the cabin exceeds the set value to ensure that the pressure is always in a safe range during the operation of the equipment.
pressure gauge and control panel are equipped synchronously inside and outside the cabin. Patients can adjust the pressure and talk in the cabin by themselves, which reduces the dependence on external operators and improves the operation efficiency.
using high-strength aviation-grade aluminum alloy integrated molding technology, the structure has a service life of more than 15 years, and is lighter than stainless steel, and has lower load-bearing requirements for building floors.
equipped with a medical-grade oxygen concentrator of 10 liters per minute to continuously provide stable high-purity oxygen to ensure that users can still obtain sufficient oxygen supply under twice the atmospheric pressure environment.
Equipped with a high-fidelity two-way intercom system, it can maintain a clear call even in a high-pressure environment of twice the atmospheric pressure, effectively alleviating the anxiety of first-time users and those with fear of confined spaces.
| Parameter Items | Technical Specifications and Indicators |
| Product Model | HP2202 2.0 ATA |
| Maximum work pressure | 2.0 atmospheres (200 kPa) |
| cabin dimensions | 2200 mm in length, 850 mm in diameter |
| Area | Approximately two square meters |
| Air compressor flow rate | 120 liters per minute |
| Oxygen purity | Greater than 93% |
| Window Material | 30mm thick high-transparency polycarbonate |
| air cooler | Equipped with efficient cooling and dehumidification functions |
| Expected delivery time | Seven to fifteen business days after receiving the prepayment |
| hull color | White or custom spray paint |

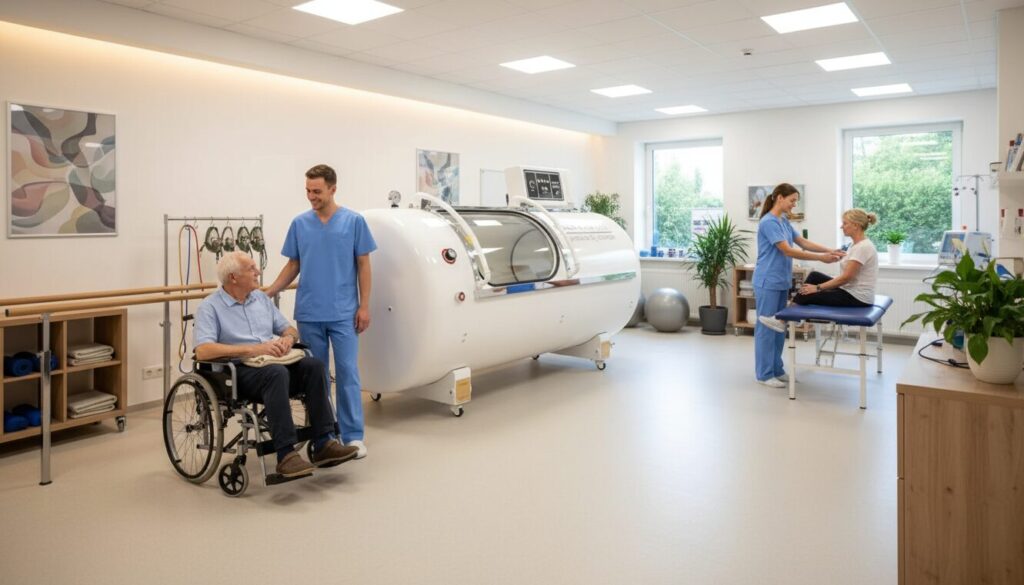

suitable for postoperative patients to provide rapid healing support, 2.0 atmospheres of pressure can effectively relieve deep tissue edema, improve the treatment of professional clinic.

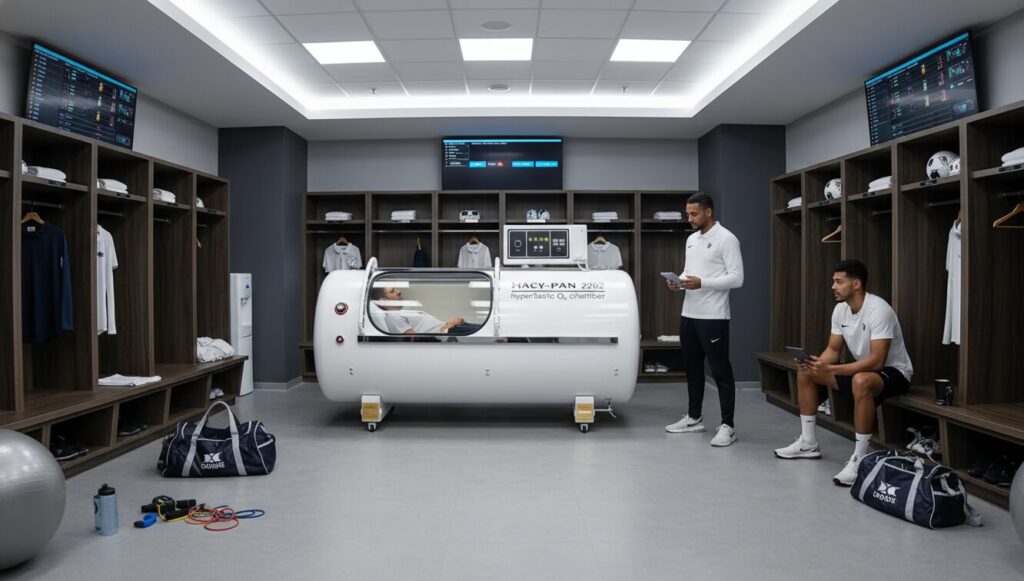

help athletes quickly eliminate lactic acid accumulation after competition or high-intensity training, repair small muscle damage through hyperbaric oxygen environment, and shorten physical recovery time.
for the pursuit of skin repair and brain cognitive function optimization of users, the use of hyperbaric oxygen to promote collagen regeneration, in line with the real needs of high-end medical beauty customers.

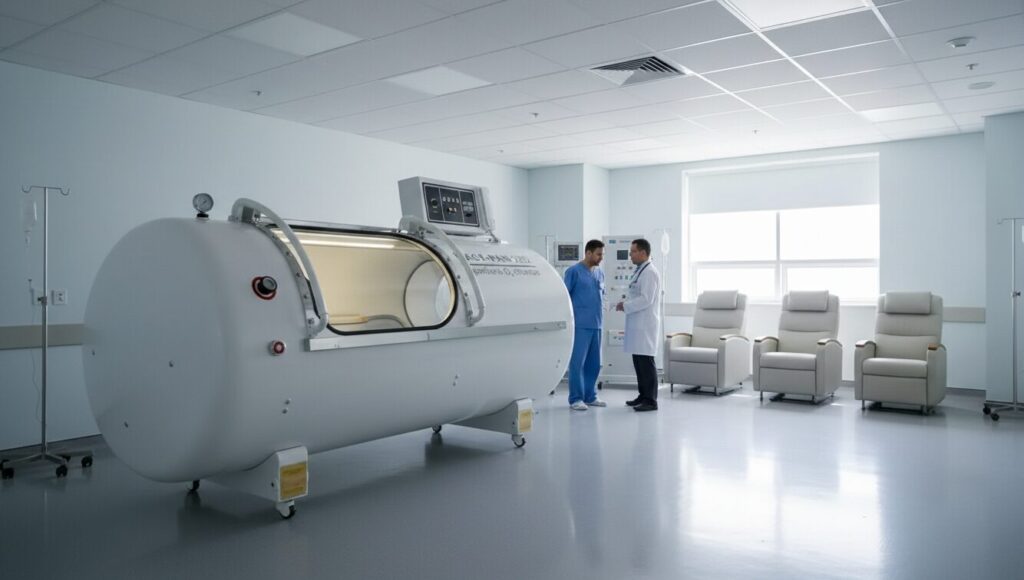

as a supplementary equipment of hyperbaric oxygen treatment department, it can be used to treat clinical symptoms such as carbon monoxide poisoning and decompression sickness that require high-pressure environmental intervention.

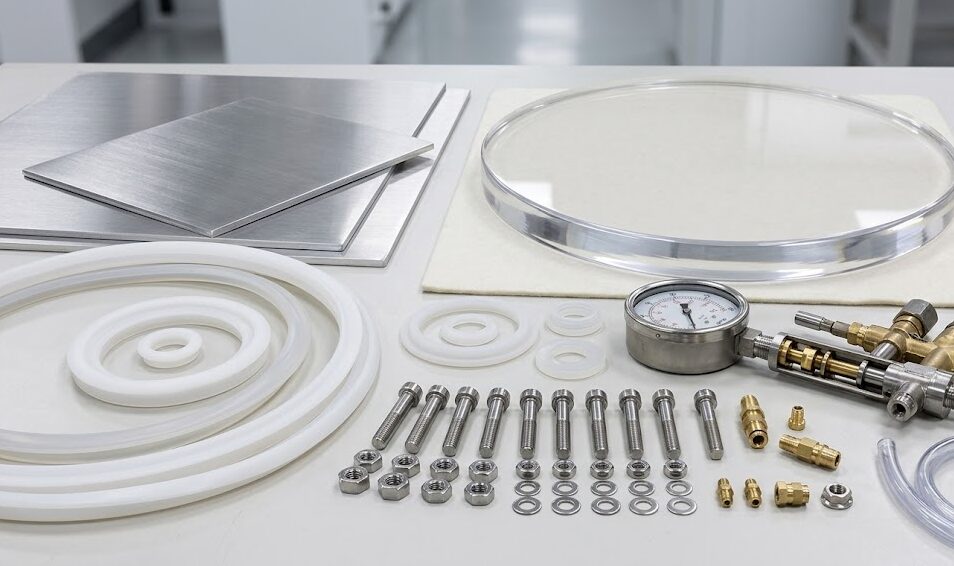

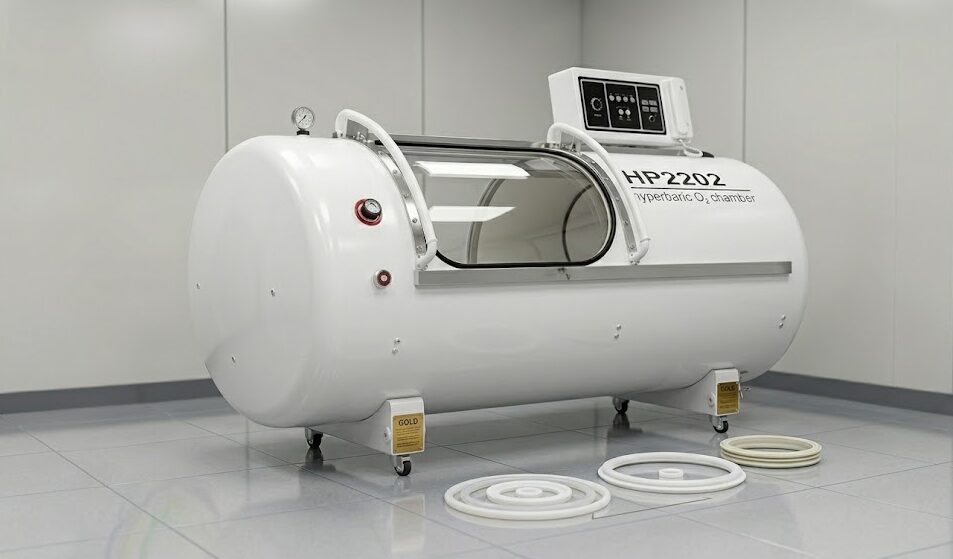

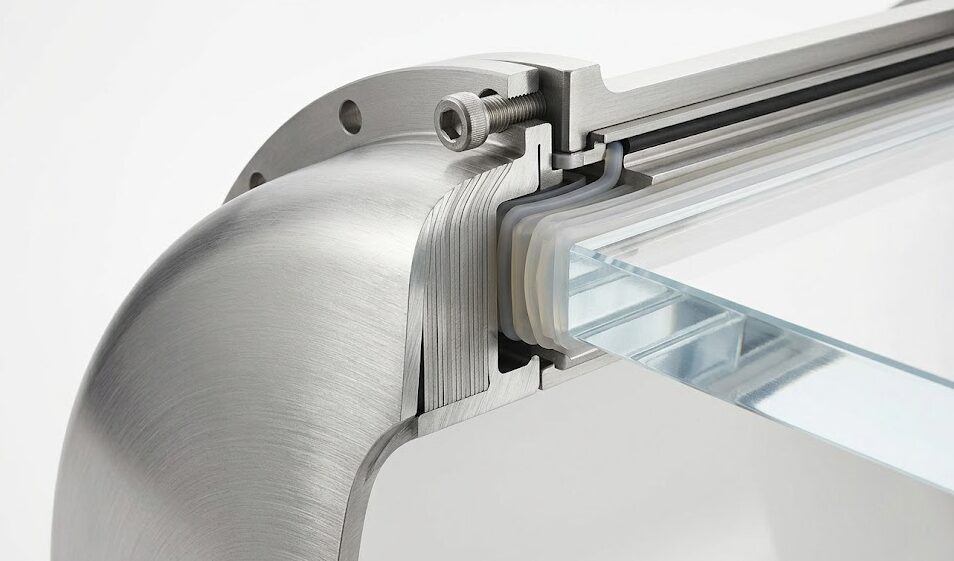

The core cabin of this product is made of aviation-grade special aluminum alloy with a thickness of 4mm, which has extremely high fatigue strength. The window is made of 30mm thick aviation polycarbonate plate, which has excellent pressure resistance and transparency. The internal seals are made of medical grade silica gel, which is non-toxic, tasteless and does not deform under long-term high pressure environment.
Provide a pair of 1 technical consulting services to assist customers in selecting models based on site planning. After-sales service provides a full set of installation guidance video and remote video online training, and all core parts are replaced free of charge during the one-year warranty period.
This product design life is fifteen years. It is recommended to replace the air filter every two thousand hours of operation, and regularly check the integrity of the sealing ring to ensure long-term stable operation under twice the atmospheric pressure.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
HP2202 is a hard-type hyperbaric oxygen chamber with a working pressure of up to 2.0 atmospheres, designed specifically for medical and rehabilitation institutions that seek excellent clinical efficacy. As a direct-source manufacturing factory, Hbotsale eliminates all intermediary markups to offer you highly competitive factory prices and faster, guaranteed global logistics delivery.
2.0 atmospheres
Working pressure
93% to 95%
Oxygen purity
850 millimeters
Cabin diameter
the pressure control accuracy reaches 0.05 atmospheres, which can provide deeper tissue penetration than the ordinary 1.3-atmosphere oxygen chamber and significantly shorten the clinical rehabilitation period.
The cabin is equipped with two manual safety valves and an automatic pressure relief valve, which will automatically open when the pressure in the cabin exceeds the set value to ensure that the pressure is always in a safe range during the operation of the equipment.
pressure gauge and control panel are equipped synchronously inside and outside the cabin. Patients can adjust the pressure and talk in the cabin by themselves, which reduces the dependence on external operators and improves the operation efficiency.
using high-strength aviation-grade aluminum alloy integrated molding technology, the structure has a service life of more than 15 years, and is lighter than stainless steel, and has lower load-bearing requirements for building floors.
equipped with a medical-grade oxygen concentrator of 10 liters per minute to continuously provide stable high-purity oxygen to ensure that users can still obtain sufficient oxygen supply under twice the atmospheric pressure environment.
Equipped with a high-fidelity two-way intercom system, it can maintain a clear call even in a high-pressure environment of twice the atmospheric pressure, effectively alleviating the anxiety of first-time users and those with fear of confined spaces.
| Parameter Items | Technical Specifications and Indicators |
| Product Model | HP2202 2.0 ATA |
| Maximum work pressure | 2.0 atmospheres (200 kPa) |
| cabin dimensions | 2200 mm in length, 850 mm in diameter |
| Area | Approximately two square meters |
| Air compressor flow rate | 120 liters per minute |
| Oxygen purity | Greater than 93% |
| Window Material | 30mm thick high-transparency polycarbonate |
| air cooler | Equipped with efficient cooling and dehumidification functions |
| Expected delivery time | Seven to fifteen business days after receiving the prepayment |
| hull color | White or custom spray paint |
suitable for postoperative patients to provide rapid healing support, 2.0 atmospheres of pressure can effectively relieve deep tissue edema, improve the treatment of professional clinic.
help athletes quickly eliminate lactic acid accumulation after competition or high-intensity training, repair small muscle damage through hyperbaric oxygen environment, and shorten physical recovery time.
for the pursuit of skin repair and brain cognitive function optimization of users, the use of hyperbaric oxygen to promote collagen regeneration, in line with the real needs of high-end medical beauty customers.
as a supplementary equipment of hyperbaric oxygen treatment department, it can be used to treat clinical symptoms such as carbon monoxide poisoning and decompression sickness that require high-pressure environmental intervention.
The core cabin of this product is made of aviation-grade special aluminum alloy with a thickness of 4mm, which has extremely high fatigue strength. The window is made of 30mm thick aviation polycarbonate plate, which has excellent pressure resistance and transparency. The internal seals are made of medical grade silica gel, which is non-toxic, tasteless and does not deform under long-term high pressure environment.
Provide a pair of 1 technical consulting services to assist customers in selecting models based on site planning. After-sales service provides a full set of installation guidance video and remote video online training, and all core parts are replaced free of charge during the one-year warranty period.
This product design life is fifteen years. It is recommended to replace the air filter every two thousand hours of operation, and regularly check the integrity of the sealing ring to ensure long-term stable operation under twice the atmospheric pressure.
