2.5 Ata Hyperbaric Chamber: How To Verify The Spec

Seeing “2.5 ATA” displayed on the device’s interface, many people will initially interpret it as “higher pressure, therefore better performance.” This judgment is too hasty. For hyperbaric oxygen chambers, the pressure value is only the starting point for verification; it does not answer the state of the equipment to reach that pressure, nor does it describe the cabin structure, oxygen supply method, intended use or target market approval.

A truly effective approach is to break down this figure and have the supplier map each item to specific models and documentation.

Read the first 2.5 ATA correctly

ATA is an abbreviation for atmospheres absolute, indicating absolute pressure measured relative to a perfect vacuum. 1 ATA is the absolute pressure of one standard atmosphere, not an additional atmosphere above ambient atmospheric pressure.

According to 1 standard atmospheric pressure is equal to 101.32 5千帕 conversion, 2.5 ATA is equal to 253.312 5千帕 absolute pressure, about 36.7398 psia. Under standard sea level atmospheric pressure assumptions, this corresponds to a gauge pressure of about 151.987 5千帕, which is about 22.0439 psig. The site ambient pressure will vary with altitude and weather, and the actual conversion of absolute pressure to gauge pressure shall be based on the local ambient pressure.

Therefore, when you see the specifications of the 2.5 ata hyperbaric chamber, first ask whether ATA in the page does use absolute pressure caliber. If 1 other document only writes psi, also make sure it refers to psia or psig, otherwise the two seemingly close numbers may not be on the same benchmark at all.

A single pressure reading cannot replace the three parameters

The equipment specification sheet shall list the normal operating pressure, the maximum allowable working pressure, and the set pressure of the pressure-relief device separately. Which specific metric the “2.5 ATA” on the sales page refers to can directly affect the comparison results.

The maximum allowable pressure is not equal to the daily operating pressure, the equipment can reach a certain pressure, nor does it mean that any user is suitable for use under this pressure. The supplier is required to write the pressure name, value, unit, reference zero and corresponding working status in the same technical specification, which is more reliable than oral confirmation. If ATA and psi appear simultaneously, it is also necessary to verify whether the two values are consistent.

Pressure range is not a medical qualification

The common clinical hyperbaric therapy pressure range may fall within 2.0 to 3.0 ATA, but this does not mean that a device nominally 2.5 ATA automatically becomes a compliant clinical hyperbaric therapy device. The clinical definition also involves full body access to the hard capsule, breathing medical grade oxygen, and the corresponding pressure vessels, fire codes, and professional management conditions.

Similarly, pressure values alone cannot substantiate indications, efficacy, oxygen concentration, or regulatory approval. When procuring medical devices, verify the specific manufacturer, complete model number, intended use, and target market. A license for a certain model does not automatically cover other models of the same brand or new applications.

Verify the cabin and the entire system together

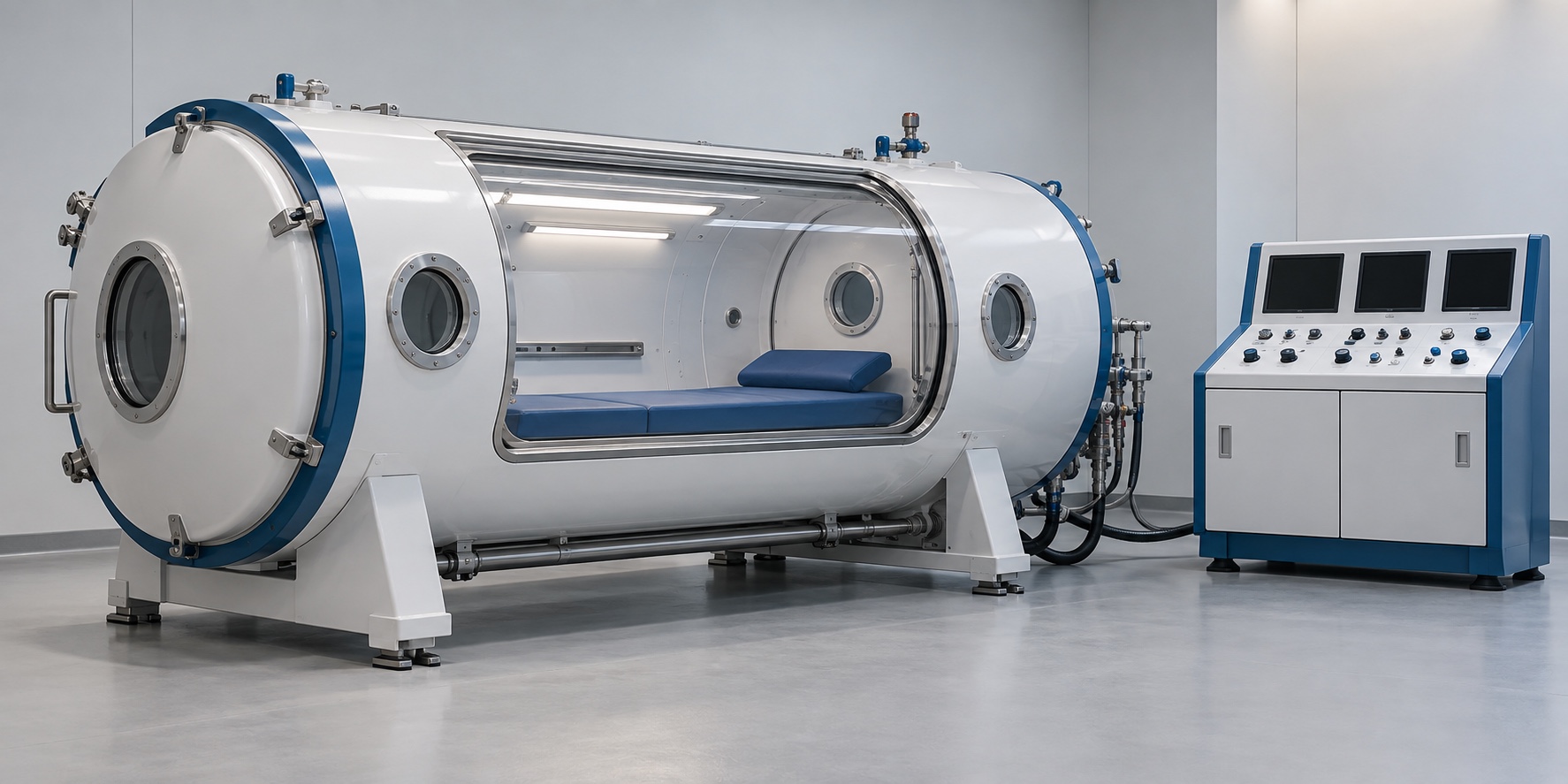

A pressure chamber does not consist of just a single pressure-resistant shell. A complete system may also include doors, observation structures, pressurization and depressurization systems, ventilation, air or oxygen supply, control, monitoring, communications, and safety accessories. The quotation only showcases the attractive cabin design without specifying the control and pneumatic configurations, which is still insufficient to assess the equipment’s capabilities.

For 2.5 ATA specifications, the supplier shall provide the design basis, applicable standard version, inspection record, marking or certification scope of the specific pressure structure, and specify the material, manufacturing location and applicable model. The name of the material itself is not a substitute for design pressure, fatigue life, testing and maintenance requirements; nor are adjectives such as "medical grade" and "advanced" a substitute for a field of verification.

Oxygen supply also needs to be considered separately. The cabin environmental pressure, the pressurizing medium, the user’s breathing gas, and the oxygen concentration are not the same parameter. The inclusion of oxygen in the product name does not justify the use of pure oxygen in the cabin, the use of respiratory gases to a 1 concentration, or the implementation of clinical HBOT.

Verify the file against the physical item before purchasing

The formal quotation shall be accompanied by a configuration list, technical specifications, labels, instructions for use, installation conditions, maintenance plan and safety information. At the time of delivery, the model number, serial number or unique identification on the physical equipment shall correspond to the contract, license, specification and maintenance record.

Also ask who is responsible for installation, commissioning, acceptance, operation training, maintenance training, quality assurance and service. If the equipment involves import, the manufacturer, consignor, import responsibility, country of origin and target market requirements should be clearly defined in the contract, rather than "can be shipped" as proof of compliance delivery.

Venue and operating conditions to be confirmed before placing the order

Just because the cabin can fit into the room doesn’t mean the entire system can be installed safely. Before purchasing, check the transportation channel, door width, turning space, ground bearing, total equipment occupation, power supply, grounding, ventilation, fire fighting and maintenance space. The dimensions of the entrance should also distinguish between clear width, clear height, the threshold, and the space required for opening.

Operational arrangements need to cover continuous monitoring, communications, emergency pressure relief, power outage treatment, cleaning, maintenance and regular safety inspections. High concentrations of oxygen can increase the risk of fire, and cabin materials, electrical equipment, clothing and cleaning supplies should be in accordance with the specific equipment instructions. Families, health centers and medical institutions have different personnel and emergency conditions and cannot share a set of default operating assumptions.

Finally, let the supplier write "what kind of pressure 2.5 ATA belongs to, which model it corresponds to, under what state it reaches, what structure and oxygen supply scheme it adopts, and according to which documents" into the same technical document. The lack of any of these key items should be marked as insufficient information first, rather than adding points to it with higher stress numbers.
