Hbot

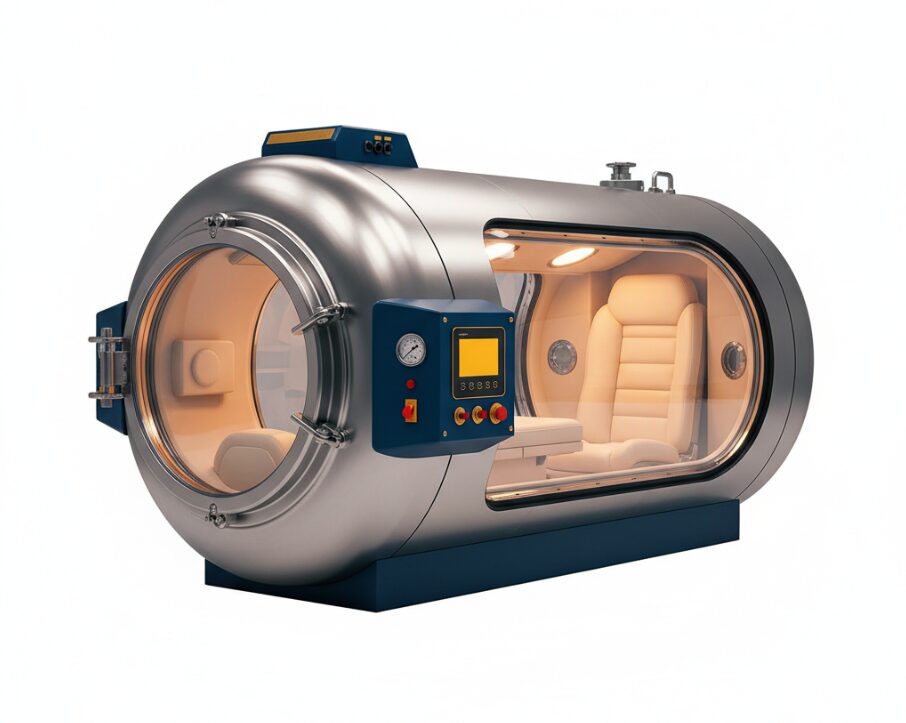

Hardshell Hyperbaric Chamber
This hard-shell hyperbaric oxygen chamber is made of 2.0 ATA high-pressure design and medical-grade 304 stainless steel. It integrates a two-way intelligent control system to provide high-concentration, safe and long-life professional-grade oxygen therapy solutions for rehabilitation institutions and supports bulk purchase.
Hardshell Hyperbaric Chamber important parameters
2.0 ATA
Maximum pressure:
304 stainless steel
Material:
dual screen intelligent control
Control system:
Hardshell Hyperbaric Chamber features
2.0 ATA Constant High Pressure:
2.0 ATA pressure can increase plasma dissolved oxygen up to 20 times compared to a soft chamber 1.3 ATA. This high-pressure environment can effectively penetrate the capillary blockage area, so that the tissue repair speed increased by 40%, significantly shorten the recovery cycle.
Zero deformation of the cabin structure:
The cabin body is made of 2.5mm thick medical grade stainless steel. Compared with plastic or aluminum alloy material, it has higher fatigue resistance and a service life of up to 15 years. It can still maintain zero deformation of the cabin structure under frequent high pressure switching.
Independently complete buck-boost operation:
10-inch touch screens are respectively equipped inside and outside the cabin, and pressure sensors with an accuracy of 0.1 kPa are built in. The user can independently complete the buck-boost operation to avoid ear discomfort caused by the delay of the extra-cabin operation.
Triple pressure relief safety guarantee:
equipped with two sets of automatic mechanical pressure relief valves (automatic exhaust when reaching the rated pressure) and a manual emergency quick pressure relief knob. In case of power failure or emergency, it can realize smooth decompression and reset within 60 seconds, ensuring the absolute safety of users.
Constant temperature in the cabin:
high-power cold dryer is standard, which can adjust the temperature and humidity in the cabin in real time to solve the adiabatic compression heat generated by air under high pressure. The temperature in the cabin can be kept constant at 22-26°C, keeping it dry and comfortable even during a long experience of 90 minutes.
Full-view pressure porthole:
20mm thick high light transmission polycarbonate (PC) material window, with impact resistance, explosion-proof characteristics. The wide-angle design can effectively relieve the anxiety of claustrophobic patients and facilitate the observer to monitor the internal situation at any time.
Structured detailed parameter table
| Parameter Items | Technical indicators |
| Maximum work pressure | 2.0 ATA (200 kPa / 14.5 PSI) |
| hull material | Medical grade 304 stainless steel / aerospace grade aluminum alloy available |
| Cabin dimensions (L*D) | 2200mm * 900mm (Standard Version) |
| hatch design | Internal push-type high-pressure self-sealing hatch |
| Oxygen generation technology | 10L/min Medical Molecular Sieve Oxygen Generation System |
| Oxygen purity | ≥93% ± 3% (delivered via face mask/headphones) |
| Noise Standards | ≤55 dB (integrated silent filtration system) |
| Safety pressure relief | Dual automatic safety valves + 1 emergency manual valve |
| Control method | Dual PLC intelligent touchscreen system (multi-language) |
| Rated power | 1200W – 1500W |

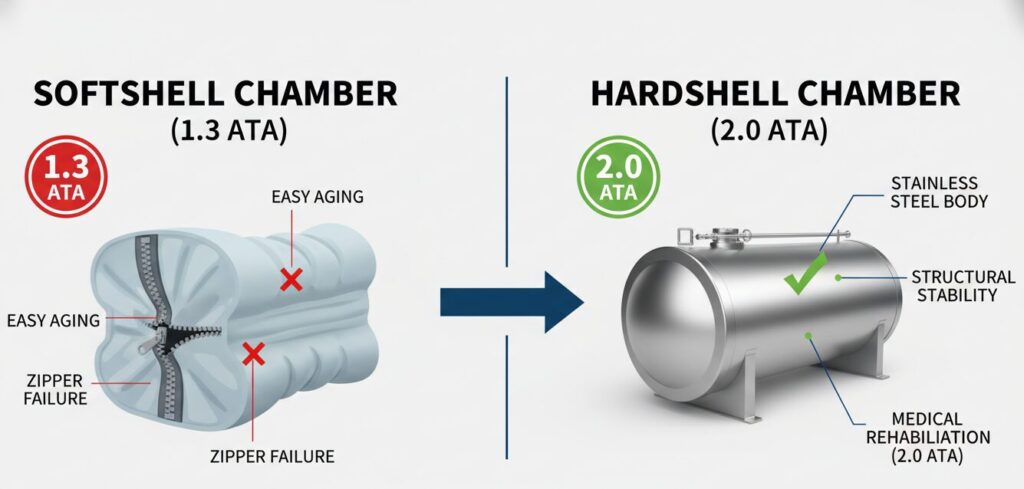

Hardshell Hyperbaric Chamber contrast point
This product as a professional hard shell oxygen chamber, its core advantage lies in the upper pressure limit and structural stability. Compared with the soft oxygen chamber on the market (only 1.3 ATA), this product can reach the 2.0 ATA with real medical rehabilitation significance, and the stainless steel chamber body has passed the strict high-pressure fatigue test, completely eliminating the risks of easy aging, air leakage and zipper collapse after compression of the soft chamber.
High-efficiency booster system:
Adopting double-pump linkage air supplement technology, it can reach the preset pressure smoothly within 10 minutes. Solve the problem of eardrum tingling and experience interruption caused by slow pressure rise and large pressure fluctuation in ordinary oxygen chamber.
Silent air purification:
Built-in five-layer composite HEPA filter and high-volume silencer. It solves the pain point of excessive noise of industrial-grade compressors interfering with users’ rest, and creates a deep sleep environment of less than 50 decibels.
Non-sensitive temperature and humidity control:
integrated high-power condensation module, real-time condensation of compressed air moisture. It solves the “sauna effect” that is easy to appear in the hyperbaric oxygen chamber, so that the environment in the cabin is always maintained at the most suitable humidity of 55% for the human body.
Hardshell Hyperbaric Chamber Applicable Crowd

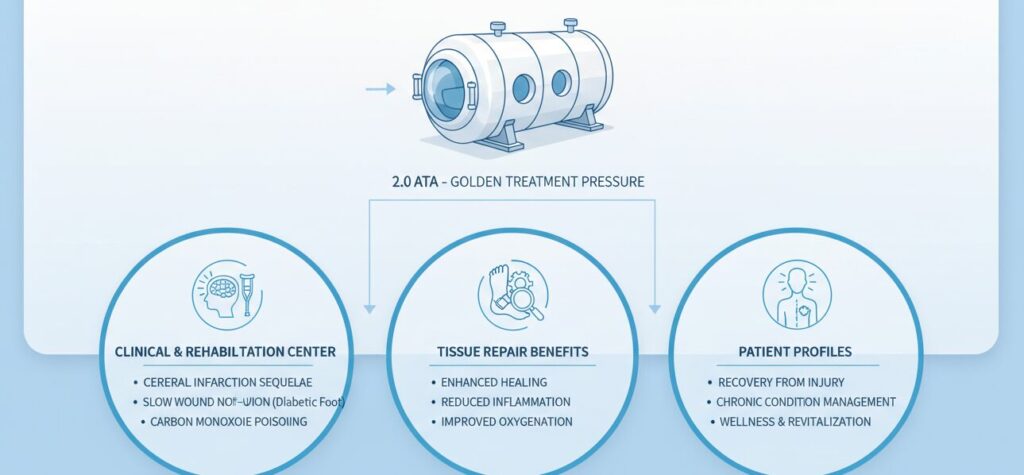

Clinical and rehabilitation center:
it is suitable for patients with sequelae of cerebral infarction, slow wound nonunion (such as diabetic foot) and carbon monoxide poisoning. The pressure environment of the 2.0 ATA is the golden treatment pressure recognized in medical guidelines to produce significant tissue repair.
Professional athletes and gymnasiums:
for lactic acid accumulation and muscle micro-damage after high-intensity training. Hyperbaric oxygen can accelerate the production of ATP by mitochondria and increase the recovery speed of athletes’ physical fitness by more than 2 times. It is the standard configuration of the core rehabilitation room of professional teams.
High-end beauty and anti-aging institutions:
for skin collagen loss and cell aging problems. Hyperbaric oxygen environment can activate dormant fibroblasts, promote endogenous collagen regeneration, significantly improve skin firmness and pigmentation, and attract high net worth customers who pursue extreme anti-aging.
High-end home health care population:
suitable for elite groups with long-term high-pressure work, chronic fatigue and sleep disorders. Through regular HBOT experience, can significantly remove free radicals in the body, improve the brain hypoxia, improve the proportion of deep sleep.
Hardshell Hyperbaric Chamber instructions
Know Us and Contact Us
Get a Free Quote Today.

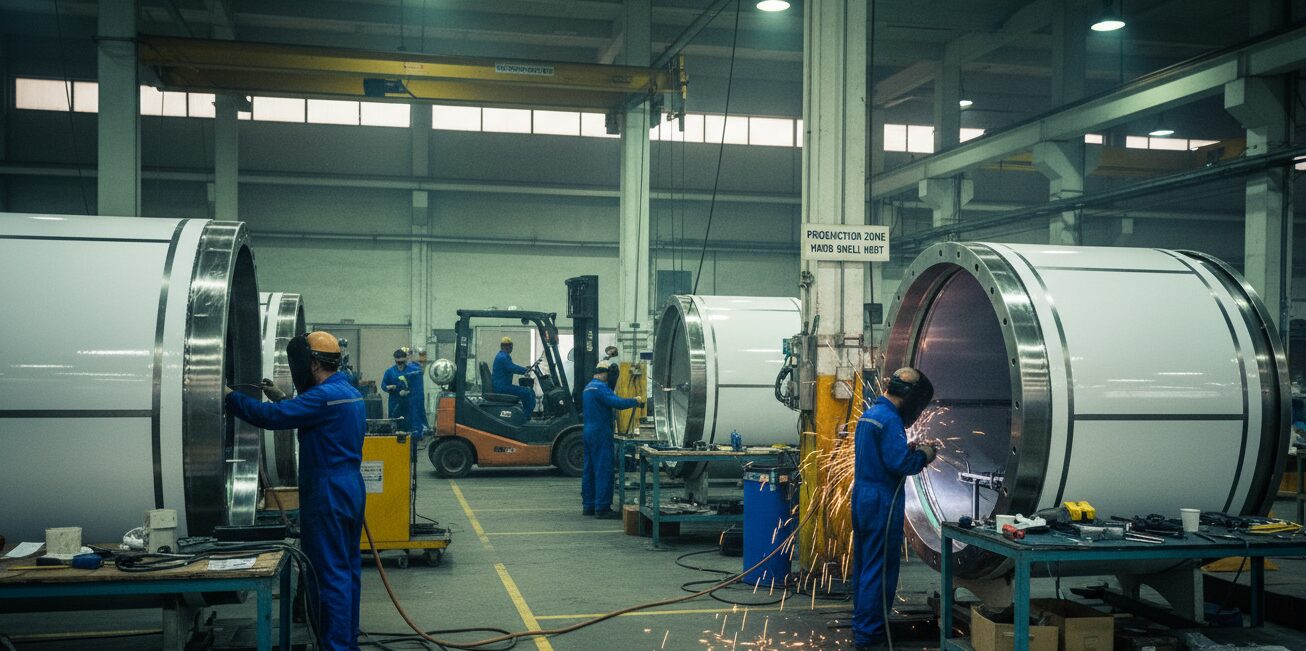

Our factory
A: The hard shell oxygen chamber adopts 304 stainless steel and complex PLC control system, which supports pressure above 2.0 ATA, which requires extremely high sealing and pressure-resistant process. Compared to the soft cabin can only provide “health level” oxygen therapy, hard cabin can provide “medical level” rehabilitation effect.
A: Our system is highly automated, built-in preset scheme, and equipped with dual screen automatic control system. After completing the 1-hour online video training provided by us, ordinary employees or users can safely get started.
A: The system provides 93%±3% medical oxygen directly through a face mask. Built-in safety protocols limit the single-use time (usually 60-90 minutes), and at 2.0 ATA pressure, the dose is well below the oxygen toxicity threshold and is very safe.
A: Very low. It is only necessary to clean the air compressor filter element regularly (every 500 hours) and wipe the inside of the cabin regularly. Due to the stainless steel material, there is no replacement cost for the aging of the soft compartment material and the wear of the zipper.
A: It should be installed on the flat ground (it is recommended to bear more than 500kg/㎡), and the room should have good ventilation conditions. The power supply needs to support 16A special socket, no special water supply and drainage pipeline or independent machine room, easy to install.
A: The core cabin is designed according to the 15-20 year standard. The design life of core electronic components (such as PLC and compressor) is more than 10000 hours, and the modular design is adopted, which is extremely convenient for later replacement.
